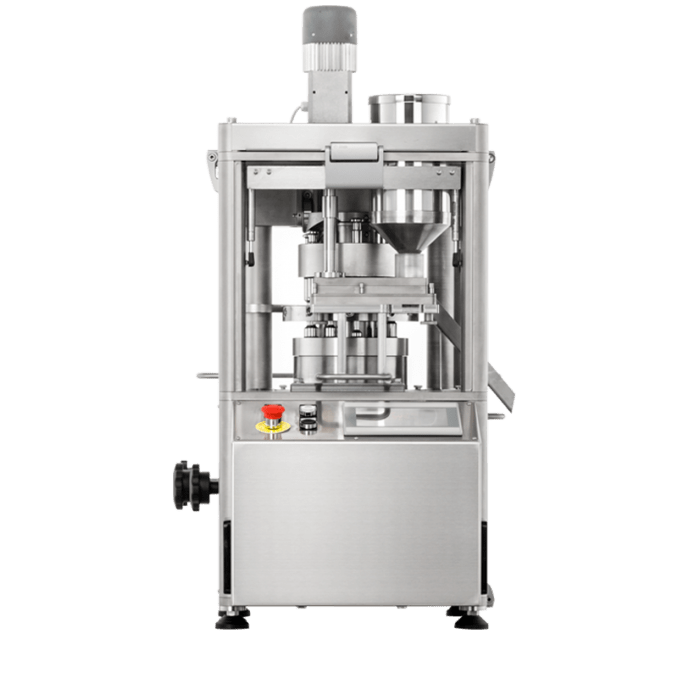

CPR-18_intro-copiapp-1-copia-1-700x678

Titolo Prova

Descrizione esempio Descrizione esempio Descrizione esempio Descrizione esempio

CPR-18
TABLET MACHINE



A bench top rotary tablet press machine available in 2 main versions D-8 or B-10 (B&D version available upon request). CPR-18 has been designed and completely manufactured in Italy according to CE and GMP rules. As a result it is used for R&D labs and pilot or small scale production batches. It is easy to clean and simple to set up. Moreover the tablet punching CPR-18 can operate from 1 set to a full set of punches. Most important the tableting machine is designed to fit into a containment isolator systems (CPR-18 Wip).

MODELS

COMBINATIONS TABLET PRESS MACHINE

POSSIBLE TABLET SHAPE

MODIFIED CAPSULE

FLAT-FACED

FLAT-FACED

STANDARD CONVEX

STANDARD CONVEX

VIDEO

GALLERY

Previous slide
Next slide

TECHNICAL DATA

STATIONS NUMBER

10

8

MAXIMUM TABLETS DIAMETER

16 mm

22 mm

PRE-COMPRESSION FORCE

0,5 t

0,5 t

MAXIMUM COMPRESSION FORCE

6 t

6 t

DEPTH OF FILL

17,4 mm

17,4 mm

TABLETS/HOUR

2.000/18.000

2.000/14.500

UPPER PUNCH PENETRATION

5 mm

5 mm

FEED

Open feed frame or forced feeder

Open feed frame or forced feeder

TOOLING

B

D

SPEED CONTROL

Variable through inverter

Variable through inverter

MAIN MOTOR

2,2 Kw

2,5 HP

NET WEIGHT

340 kg machine + 95 kg carriage

340 kg machine + 95 kg carriage

MACHINE’S DIMENSIONS



650 x 750 x 1750 H. mm



650 x 750 x 1750 H. mm
