IN-CAP containment system
IN-CAP WIP
HIGH
CONTAINMENT

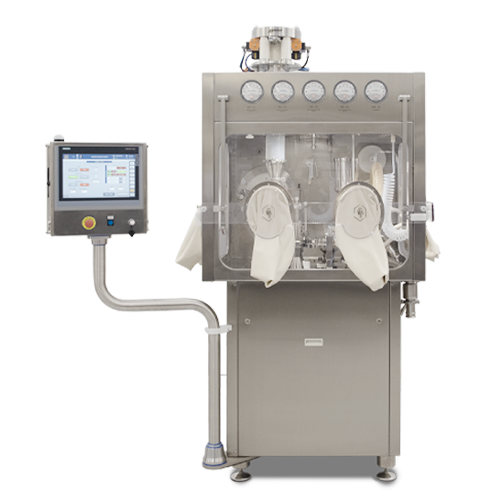

The IN-CAP WIP High Containment Capsule Filling System is an advanced pharmaceutical solution designed for the safe and efficient production of capsules containing high-potency active pharmaceutical ingredients (HPAPI).
Developed by Dott. Bonapace, the system combines the flexibility and precision of the IN-CAP capsule filling machine with an integrated containment environment, providing maximum operator protection, product safety, and process reliability.
High Containment Capsule Filling Machine for HPAPI Production
Designed for applications requiring high containment levels, the IN-CAP WIP can achieve containment performances up to OEB5 / OEL <1 μg/m³, making it suitable for pharmaceutical manufacturers working with potent compounds, innovative therapies, and high-value formulations.
Integrated Isolator System for Pharmaceutical Capsule Production
Unlike traditional solutions where the machine is adapted inside an isolator, the IN-CAP WIP is engineered from the beginning for native isolator integration, ensuring optimized mechanical design, improved ergonomics, simplified operation, and enhanced cleaning procedures.
The machine is compatible with all capsule sizes (000 to 5, including DB Caps) and offers independent, double, or triple station configurations. With over 20 filling combinations available, including patented double powder dosing, IN-CAP WIP delivers exceptional flexibility for pharmaceutical production.
GALLERY
IN-CAP WIP High Containment Tablet Press System
Key Features
High-Quality Construction for Strength and Hygiene
- Fabricated from AISI 316L stainless steel for durability.
- Internal surfaces polished to a smooth Ra < 0.50 μm for easy cleaning.
- External surfaces finished to Ra < 0.80 μm for enhanced durability.
Enhanced Accessibility and Safety
- Equipped with three doors for easy operator access.
- Includes two pairs of robust gloves made from Neoprene/EPDM/CSM, ensuring secure material handling.
Advanced Airflow and Containment Technology
- Features a state-of-the-art laminar airflow system for particle-free operations.
- Achieves a containment performance target (CPT) of <1 μg/m³ (8h TWA), meeting strict OEB 5 standards.
With the IN-CAP WIP ISOLATED, pharmaceutical manufacturers can trust in a system that combines superior containment technology with precision-engineered safety, protecting both personnel and processes.
Applications
The IN-CAP WIP containment system is suitable for:
- HPAPI pharmaceutical manufacturing
- Oncology drug production
- Clinical trial batches
- R&D laboratories
- Pilot-scale production
- Small and medium batch production
- High-value pharmaceutical formulations
