MACHINE FOR VIALS

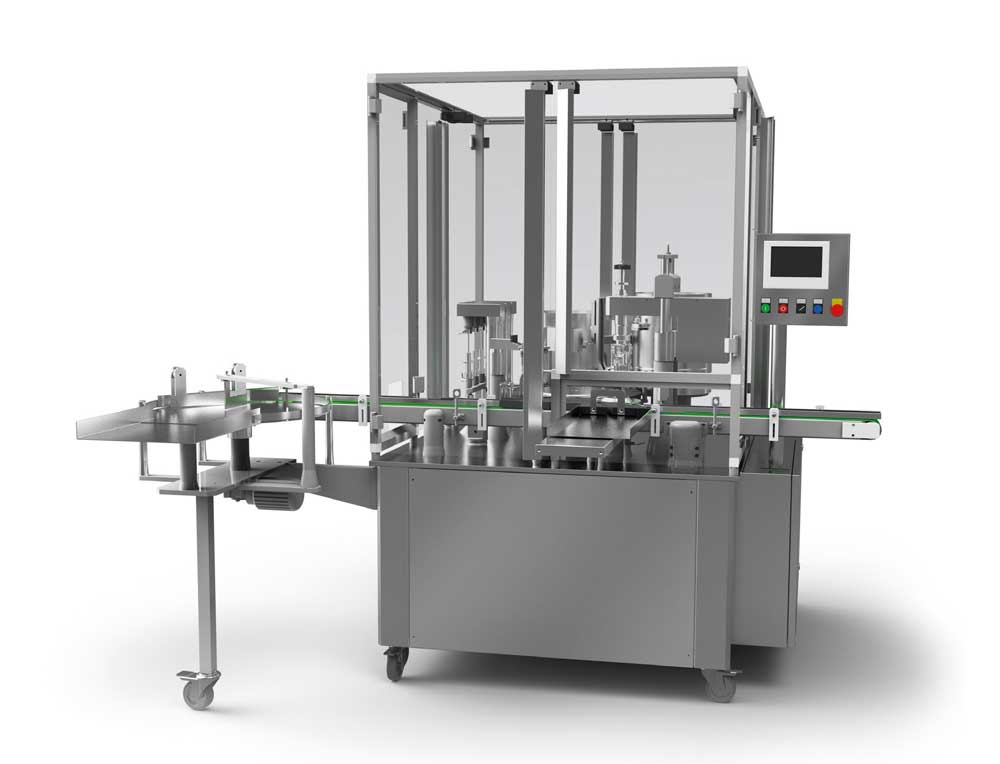

FCM-1 IS THE FILLING AND CLOSING MACHINE FOR VIALS

FCM-1
FILLING & CLOSING

The FCM-1 vial filling and closing machine is engineered and manufactured in strict accordance with GMP standards. Designed to meet the highest quality demands of the pharmaceutical industry, this versatile machine can be configured to accommodate a wide range of vial formats, ensuring it meets the specific needs of every customer.

VIAL DIAMETERS:

  • Minimum Ø: 8 mm
  • Maximum Ø: 55 mm
DOWNLOAD BROCHURE

    REQUEST MORE INFORMATION

      By submitting this form, I confirm that I have read and understood the Dott. Bonapace & C. privacy policy.


      CHECKS
      • Minimum load on the belt
      • Bottle presence control on the carousel with enabling of the following stations
      • Stopper presence check
      • Alu cap presence check
      • Control of maximum bottle discharge on the basket
      • Processing carousel block control

      FEATURES

      STANDARD FEATURES

      AUTOMATIC LOADING OF BOTTLES

      AUTOMATIC ROTARY TABLE

      AUTOMATIC DOSAGE ADJUSTMENT

      STOPPER INSERTION

      AUTOMATIC STOP OR REJECTION DUE TO MISSING STOPPERING

      ALU CAP INSERTION

      AUTOMATIC STOP OR REJECTION DUE TO MISSING ALU CAP

      ALU CAP CRIMPING

      AUTOMATIC DISCHARGE ON BELT OR BASKET

      OPTIONAL EQUIPMENT

      NITROGEN FLUSHING BEFORE OR DURING FILLING

      DOSING PUMPS WITH ROTATING PISTON IN CIP & SIP EXECUTION

      SPECIAL STOPPER INSERTION (EX. FREEZE-DRIED PRODUCTS)

      AUTOMATIC DISCHARGE OF REJECTED BOTTLES

      LAMINAR FLOW

      DOSAGE ADJUSTMENT FROM THE OPERATOR PANEL

      AVAILABILITY OF PERISTALTIC PUMP INSTEAD OF ROTARY PISTON PUMPS

      TECHNICAL DATA

      SYRINGES MAX SPEED

      1.000 p/h

      NITROGEN FEEDING

      6 Bar

      INSTALLED POWER

      3 Kw

      ELECTRIC SUPPLY

      400 V – 50 H

      NET WEIGHT

      750 Kg

      SYRINGES

      Ø min 8 mm Ø max 52 mm
      DOWNLOAD BROCHURE

        REQUEST MORE INFORMATION

          By submitting this form, I confirm that I have read and understood the Dott. Bonapace & C. privacy policy.
