MACHINE FOR DISPOSABLE SYRINGES

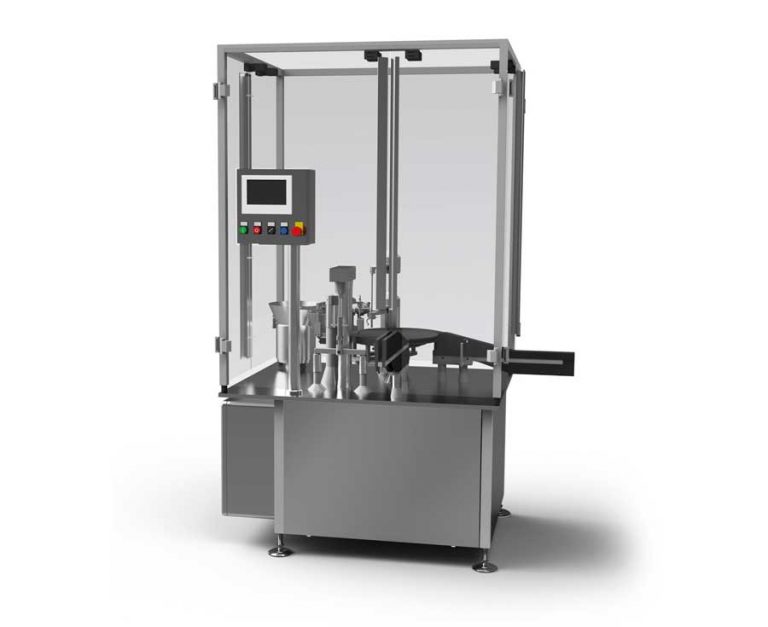

The filling and stoppering machine for disposable syringes mod. FSC-1 is designed and built in conformity with GMP standards. Conceived to fulfill the highest quality requirements of pharmaceutical industries, it can be set to cover a wide range of formats to satisfy the needs of every customer.

FSC-1
FILLING & STOPPERING

The filling and stoppering machine for disposable syringes mod. FSC-1 is designed and built in conformity with GMP standards. Conceived to fulfill the highest quality requirements of pharmaceutical industries, it can be set to cover a wide range of formats to satisfy the needs of every customer.

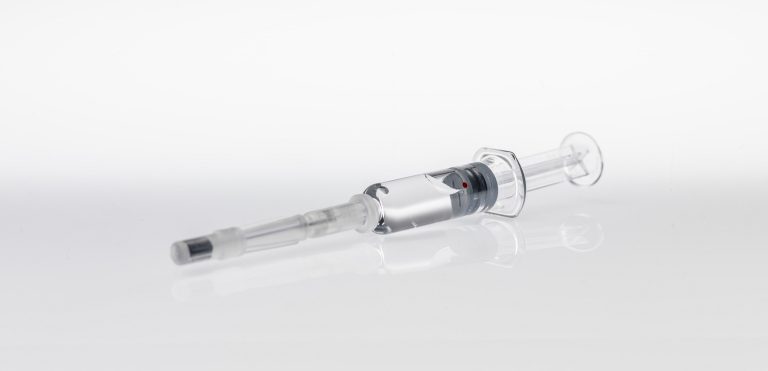

Syringes measures: Ø min 6,75 mm (0.5 ml) / Ø max 32 mm (50 ml).

CONSTRUCTION FEATURES
• Support frame completely lined with stainless steel panel
• Movements driven by mechanical cams and brush-less motors; reduction gears and bearings with life long lubrication, all protected from liquid leakage
• Minimize presence of operative groups over the syringes, for a better efficiency of laminar flow

The filling and stoppering machine for disposable syringes mod. FSC-1 is designed and built in conformity with GMP standards. Conceived to fulfill the highest quality requirements of pharmaceutical industries, it can be set to cover a wide range of formats to satisfy the needs of every customer.

CHECKS
• Minimum syringe load control
• Check the presence of the syringe in the carousel
• Minimum stopper load control on linear track
• Checking the presence of stopper at the funnel
• Funnel position control
• Maximum syringe discharge control
• Processing carousel block control

FEATURES

STANDARD FEATURES

MANUAL SYRINGES LOADING

AUTOMATIC DOSAGE ADJUSTMENT

STAINLESS STEEL DOSING PUMPS, ROTATING PISTON TYPE

AUTOMATIC SELECTION OF RUBBER STOPPERS

AUTOMATIC SYRINGES UNLOADING

OPTIONAL EQUIPMENT

SYRINGES AUTOMATIC LOADING

DOSING PUMPS ROTATING PISTON TYPE, IN CIP AND SIP EXECUTION

INERT GAS FLUSHING DURING FILLING

RUBBER STOPPER INSERTION CONTROL

LAMINAR FLOW

VIDEO

GALLERY

Previous slide
Next slide

TECHNICAL DATA

SYRINGES MAX SPEED

1.000 p/h

NITROGEN FEEDING

6 Bar

INSTALLED POWER

3 Kw

ELECTRIC SUPPLY

400 V – 50 H

NET WEIGHT

750 Kg

SYRINGES

Ø min 6,75 mm (0.5 ml) / Ø max 32 mm (50 ml)
